Ford Thunderbird '89-97 Front Speaker Removal and Installation

Car Stereo Repair Home | Car stereo removal | BOSE repair | FAQ | Shipping | Top 10 | About Us

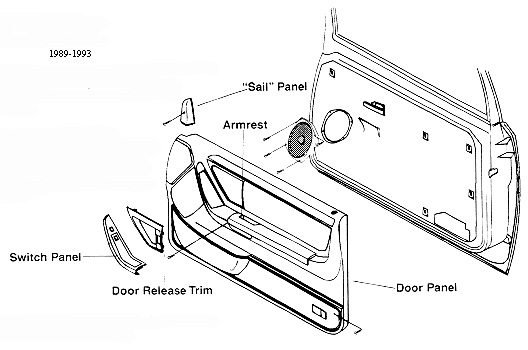

(Front speaker size 5x7in, depth 3 in)

1. Remove single Phillips screw in upper portion of power options switch panel (if equiped) and slid panel toward front of vehicle to remove.

Note: On later models, this screw will not be present. Carefully pry outward on upper portion of switch panel to release retaining clip, then slide panel toward front of vehicle to remove.

2. Remove Phillips screws from rear side of switch panel and pry off connectors.
3. Remove one (1) Phillips screw from door "sail panel" and remove panel.
4. Remove one (1) Phillips-head screw from front of armrest.
5. Pry outward on upper portion of door release trim to release retaining clips, then slide upward and forward to remove.
6. Remove one (1) Phillips screw from carpeted portion of door panel, behind courtesy light.
7. Lift door panel off window channel. Disconnect courtesy light connector and remove panel.
8. Remove four (4) Phillips screws securing speaker. Pull out speaker, disconnect and remove.
9. Re-install door panel by reversing removal steps.

If you have found these pages to be helpful, please
CLICK HERE!

Car Stereo Repair Home | Car stereo removal | BOSE repair | FAQ | Shipping | Top 10 | About Us

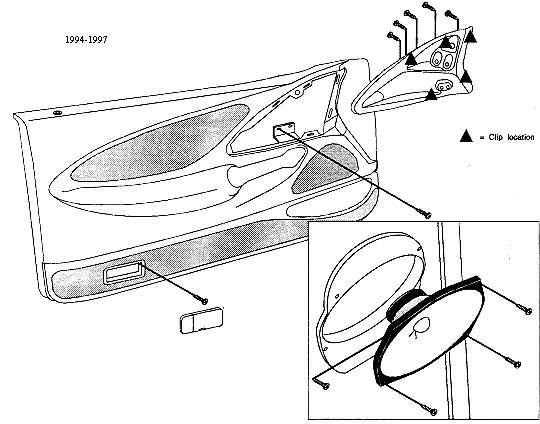

(Front speaker size 5x7/6x8 in, depth 3.9 in)

1. Unsnap courtesy light lens by prying out at slot in bottom and remove single Phillips-head screw from upper front corner of courtesy light frame.
2. Pry outward to release retaining clips along front, top, and bottom edges of door release handle trim, then slide trim forward to remove.
3. Remove five (5) Phillips screws securing power window and lock switch connectors to rear of panel and pry connectors off.
4. Pry connector off rear of power mirror switch and remove panel. Remove single Phillips-head screw from bracket in front of door release handle. Lift door panel upward, off of window channel and off of door. Disconnect courtesy light connector behind door panel and remove panel.
5. Remove four (4) Phillips-head screws securing speaker to factory mounting location, pull speaker out of mounting cavity, and disconnect speaker connector.
6. Door panel installation is the reverse of installation.
